What Is Armored Fiber Patch Cable?

Fiber patch cable, as one of the most important components of telecommunication, has drawn more and more attention due to the rapid development of telecommunication. Most people were quite familiar with the classification ofsingle-mode fiber patch cableand multimode fiber patch cable. Today, I will present a new type of fiber patch cable to you—armored fiber patch cable.

Definition of Armored Fiber Patch Cable
Armored fiber patch cable is a kind of fiber patch cable, which uses flexible stainless steel tube inside the outer jacket as the armor to protect the fiber glass inside. It remains all the features of standard fiber patch cable, but it is much stronger. And it will not get damaged even if stepped by an adult and they are rodent-resistant.

      Armored fiber patch cable

Structure of Armored Fiber Patch Cable
In the structure of the armored fiber patch cable, the outer sleeve offers protection against rodent, abrasion, twist, etc. It is usually made of plastic such as polyethylene. The next layer between the sleeve and the inner jacket is an armoring materials, such as kevlar, steel, aluminum foil, which is mainly to protect the fiber cable from being stretched during installation. Next the ripcord, ripcords are usually used to splice the cable to connectors or terminators. Then the inner jacket is a flame retardant material to support the inner fiber cable bundle that is made up of strength members, fillers and other structures. The strength members are usually aramid yarn to support the whole fiber cable. This structure is featured by an overall black medium density polyethylene jacket with ripcords.

Types of Armored Fiber Patch Cable
Armored fiber patch cable is usually classified as indoor and outdoor version. Three different kinds of cable armoring are commonly used: double armored, single armored, and non armored. The double armored cables are used at shallow depths near the shore, and the non armored cables are used for most of the ocean floor. The single armored cable is used between these extremes. Usually, the non armored fiber patch cable is cheaper than armored fiber patch cable.
1. Outdoor Armored Fiber Patch Cable
Light armor and heavy armor are the two versions of outdoor armored fiber patch cable. The light armored fiber patch cable, constructed with protective plastic jacket, are crush resistant, bend limiting and water resistant, thus letting these cables suitable for a myriad of applications from interconnects to industrial and semi-harsh environment conditions. While the heavy armored fiber patch cables are usually applied in river bed and the bottom of the sea.
2. Indoor Armored Fiber Patch Cable
Indoor armored fiber patch cable includes simplex armored and duplex armored fiber patch cable. The main difference is that simplex armored fiber optic cable does not contain stainless steel wire woven layer, yet duplex armored fiber patch cable contains stainless steel hose and stainless steel wire woven which are of compressive property, resistance to deflection, rodent resistance, anti-torque.

After going through this passage, you will understand that armored fiber patch cable is the ideal choice for customer who is looking for fiber patch cable with additional durability and protection as well as light weight.

Posted by: angelina at 07:19 AM | No Comments | Add Comment
Post contains 525 words, total size 4 kb.

July 29, 2015

The Classification of Fiber Optic Patch Cord

Optical communication industry is a rapidly growing field with the growth of the economy and people’s daily life. Fiber optic patch cords can be one of the most typical optical components that witnesses the growth of this industry, which is increasingly becoming popular around the world. But You may get confused about the classifications of fiber optic patch cords, I will help you to have a clear understanding of it.
What Is Fiber Optic Patch Cord?
Fiber optic patch cords are the most commonly used components in fiber optic network, capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. Sometimes fiber optic patch cords are also called fiber optic jumpers or fiber patch cords. They are the backbone of the fiber optics industry. These fiber patch cords are strands of optically pure glass as thin as human hair. And these cables carrying information is via mode of transmission of light.
Classification
In general, fiber optic patch cord can be divided by transmission medium (long or short distance), by connector structure and by construction of the connector's inserted core cover.
Transmission Medium
Fiber optic patch cord can be divided to single-mode and multimode patch cord according to different transmission medium. Single-mode fiber patch cable is generally yellow with a blue connector, and a longer transmission distance, which has a small core and only one pathway of light. Multi-mode fiber patch cable is generally orange or grey, with a cream or black connector and a shorter transmission distance.
Inserted Core Cover
The connector's inserted core cover conforms to APC, UPC, or PC configuration. A UPC inserted core cover is flat and is used in SARFT and early CATV. An APC connector's inserted core cover is oblique (about 30, ±5 ). To reduce the back reflection of a connector, UPC polish. Industry standard is a minimum of –40dB for PC back reflection measurement and –50dB for UPC back reflection measurement. If even less back reflection is required, an APC might be necessary. An APC connector has an 8ºangle cut into the ferrule. These connectors are identifiable by their green color. An APC polished connector has an Industry Standard Minimum of –60dB measurement. APC fiber ends have low back reflection even when disconnected.
Connector Construction
Fiber optic connectors were introduced with fiber optic technology in the 1980s. A fiber optic connector is a flexible device that connects fiber cables requiring a quick connection and disconnection. There are many types of connectors—FC, SC, ST, LC, MT, MU, E2000, DIN4, etc.

connector

According to these connectors, fiber optic patch cords can be divided intoSC patch cord, FC patch cord, ST patch cord, MT-RJ patch cord and LC patch cord, etc. The main differences among them are dimensions and methods of mechanical coupling. Organizations will standardize on one kind of connector, depending on what equipment they usually use.
Conclusion
Fiberstore offers various types of fiber optic patch cords including single-mode patch cords, multimode patch cords, as well as the SC patch cord, FC patch cord, ST patch cord, MT-RJ patch cord and LC patch cord, etc.

Posted by: angelina at 10:04 AM | No Comments | Add Comment
Post contains 547 words, total size 4 kb.

July 28, 2015

QSFP+ Cable—Is It Much Better Than SFP+ Cable?

QSFP+ (Quad Small Form-Factor Pluggable) is an extension of the established I/O interface system SFP+ and was developed for 40 Gb/s Ethernet and 40 Gb/s Infiniband QDR applications. There are QSFP+ cable and SFP+ cable according to these two modules. People might wonder that whether QSFP+ cable is better than SFP+ cable? This passage will provide you a clear answer.


First, the QSFP+ cable is specified for use with the 40GBASE-CR4/SR4, can be copper direct attached cable (DAC) or optical module, while SFP cable with SFP+ connector, is designed to work with equipment with 10G SFP+ interface. QSFP+ cable is obviously four times faster than SFP+ cable in transmission speed as 40G QSFP+ cable is the full duplex 4 channel 850nm parallel active optical cable and its transmission data rate is up to 10.3Gbit/s per channel. The 40G QSFP+ cable is widely used in 40G Ethernet, QDR InfiniBand and data center.40G QSFP Cable
Then, as the 40G QSFP+ cable features QSFP+ connectors on both ends, eliminating the need for expensive QSFP+ transceiver. 40G QSFP+ cable is more cost-effective compared with 10G SFP cable, which is more economical for customers. Taking QSFP+ AOC and SFP+ AOC as an example, QSFP+ AOC is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s. However, the SFP+ AOC delivers a single bi-directional channel operating at up to 10.3125 Gbps while using a subtle 240mW (typical) of energy per end and the average prize is nearly 20 dollars.

Last but not least, we all know that 40G QSFP+ cables and 10G SFP+ cables are the two main DAC cables on the market. 40G QSFP+ cable is designed for high-density applications that integrate 4 InfiniBand channels at 10 Gbps per lane in order to maximize performance. 40G QSFP+ Cable assemblies are high speed, low latency, twinaxial copper cables. The cable offers a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. Yet the 10G SFP+ cables provide high performance in 10 Gigabit Ethernet network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. Therefore 40G QSFP+ cable is advanced and more suitable for the fast-developed technology.

In a word, 40G QSFP+ cable is high speed, low latency, twinaxial copper cable used for high speed network backbones, enterprise network switching and network storage. This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers while 10G SFP+ can’t reach that.

Posted by: angelina at 09:37 AM | No Comments | Add Comment
Post contains 453 words, total size 3 kb.

July 27, 2015

Introduction to DAC Cables

DAC cables, or "Direct Attach Cables", are a kind of optical transceiver assembly widely applied in storage area network, data center, and high-performance computing connectivity etc. They are a form of shielded high speed cable with SFP connectors on either end. They can be used to connect switches to routers and/or servers.DAC

Before you purchase this product, a few things you need to know. Firstly, there are different versions of DAC cables. Generally Twinax cables less than 5 meters in length are passive and greater than 5 meters in length are active. The most common version is the "Passive Assembly” where the data cables are directly connected to the transmitting and receiving signal. Because this signal is not very strong, you can reach up to 5 meters with this setup depending on the switch or router. Another version is the active cable version that contains more sophisticated electronics where the transmitting power is amplified to give a better data-pulse. The third version is the "Active Optical Cable". Instead of using a high speed copper wire, this cable uses a hardened glass fiber for transmission. These glass fiber cables are becoming more widely used because of the issues associated with lower-end cables. The main issues are with the coding, if each end has to be connected to a different brand of router or switch, this can cause issues with compatibility. Another common issue is where the switch or router does not give enough power for a (long) passive cable. In this case, there are a lot of CRC errors or packet loss and unstable links—this can be solved by switching to active or active optical cables.
And there are different types of DAC connectors on the market. QSFP+ cables and SFP+ DAC cables are the two main connectors. Fiberstore supplies various kinds of high speed interconnect DAC cable assemblies including 10G SFP+ cables, 40G QSFP+ cables, and 120G CXP cables.The SFP+ DAC cables provide high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. SFP+ DAC cables have a fixed-length cable, typically 1 to 7 m (passive cables) or up to 15 m (active cables) in length, and, like 10GBASE-CX4, are low-power, low-cost and low-latency with the added advantages of using less bulky cables and of having the small form factor of SFP+. SFP+ DAC cables today is tremendously popular, with more ports installed than 10GBASE-SR. QSFP+ (Quad Small Form-factor Pluggable) DAC cables are designed for high-density applications that integrate 4 InfiniBand channels at 10 Gbps per lane. These cables are used for 40 GbE and InfiniBand standards to maximize performance.Recently DAC cables are becoming increasingly popular in the network industry, mainly because the price difference is so large when compared with regular optics. Another reason is that RJ-45 10G is not widely adopted, and most high density 10G switches are delivered with 48x SFP+ ports in 1 Rack Unit.
I believe that you have gained basic knowledge about DAC and I hope it will be useful for you.

Posted by: angelina at 08:46 AM | No Comments | Add Comment
Post contains 521 words, total size 4 kb.

July 24, 2015

Things You May Feel Curious About CWDM Transceiver

WDM is a new technology which multiplexes a number of optical carrier signals onto a single optical fiber by using different wavelengths of laser light. And in fiber-optic communications, Coarse Wavelength-Division Multiplexing (CWDM) is a convenient and cost-effective solution for the adoption of Gigabit Ethernet and Fiber Channel in campus, data-center, and metropolitan-area access networks, which has greater potential compared with DWDM (Dense wavelength division multiplexing). There are some things you may feel curious about CWDM transceiver, after going through this passage, you might have a clear understanding of CWDM transceiver.CWDM Transceiver

1. What is the difference between CWDM transceiver and DWDM transceiver?The main difference between CWDM transceiver and DWDM transceiver lies in the wavelength interval. The DWDM system’s wavelength interval is 0.2nm to 1.2nm, while CWDM possesses a much broader wavelength interval, and each wavelength band covers the five wave bands—O, E, S, C, L of single-mode fiber system. CWDM transceivers’s wavelength is 1270 nm, 1290 nm, 1310 nm, 1330 nm, 1350 nm, 1370 nm, 1390 nm, 1410 nm, 1430 nm, 1450 nm, 1470 nm, 1490 nm, 1510 nm, 1530 nm, 1550 nm, 1570 nm, 1590 nm, 1610 nm.
2. If my equipment doesn’t support CWDM or DWDM transceivers, how can I transport the signal over a WDM network?The connector type is generally a function of the density of the transceiver. CWDM transceiver supports FC/APC, FC/UPC, SC/APC, SC/UPC, LC/UPC, LC/APC, etc. GBIC transceiver is larger than an SFP transceiver, the GBIC uses the larger "SC" style of connecter while the SFP/SFP+ transceiver uses the smaller "LC" style of optical connector. Many times the optical patch cables will need to have different connector styles at each end, and example is having a SFP (LC connector) installed in a router connected to a SC port on a patch panel.
3. Can you describe the basic capabilities of CWDM transceiver?CWDM transceiver supports DFB Laser transmitter and its compliant receiver is PIN or APD. CWDM transceiver’s data rate is up to 2.7Gbps. And its operating temperature is between 0℃ and +70℃ with a distance up to 80km, which is compliant with SFP MSA SFF-8074i, digital diagnostic SFF-8472, Telcordia GR-468 and RoHS.
4. You might be curious about how to test CWDM transceiver since the coverage range of CWDM transceiver’s wavelength is very wide.To be honest, it is relatively complicated to test it, but to put it simple you can use the following methods. One is that using the white light as testing light, and then using the scan spectrometer to test it. The other is that using the 1550 nm LED light as a testing light, and then using scan spectrometer, or you could use tunable laser light source as testing light, then use the PM detection. There are some merits and demerits in the above methods. You should use them flexibly and subject to availability.
5. Since the CWDM transceiver is a new product, it might encounter some problems during its development. What are they?First, with respect to DWDM transceiver, the price advantages of DWDM transceiver is not competitive. DWDM transceiver also put great pressure on CWDM transceiver because it will form a complete metro DWDM network by using DWDM technology with good scalability. Besides, there are technical problems about the higher speed and longer transmission distance of CWDM transceiver.

Posted by: angelina at 09:52 AM | No Comments | Add Comment
Post contains 555 words, total size 4 kb.

July 23, 2015

A Brighter Future Is Embracing 100G Transceiver

Fiber works were out of people’s imagination in the ancient times, but now numerous optical products have emerged rapidly and facilitate people’s life. In the meanwhile, 100G transceiver has become possible and springs up like the mushrooms. The following passage will give a lead to 100G transceiver.
100G transceiver provides customers 100 Gigabit Ethernet connectivity options for data center networking, enterprise core aggregation, and service provider transport applications. 100G transceivers offer significant advantages over existing solutions in terms of reduced power dissipation and increased density with the added benefit of pluggability for reduced first installed cost.

100G transceiver

100G Transceiver

CFP and CXP are the two common types of 100G transceiver. The CFP defines hot-pluggable optical transceiver form factors to enable 40 Gbit/s and 100 Gbit/s applications. CFP modules use the 10-lane CAUI-10 electrical interface. While CXP modules use the CAUI-10 electrical interface, which is a multi-source agreement to produce a common form-factor for the transmission of high-speed digital signals. CXP optical transceiver is hot pluggable, and supports data rates of 40 Gbps. The CFP transceiver, as detailed in the MSA, supports both single-mode and multi-mode fiber and a variety of data rates, protocols, and link lengths, including all the physical media-dependent (PMD) interfaces, which is targeted at the clustering and high-speed computing markets.
As we all know, 100 transceiver has a very short history. On July 18, 2006, a call for interest for a High Speed Study Group (HSSG) to investigate new standards for high speed Ethernet was held at the IEEE 802.3 plenary meeting in San Diego. And in June 2008 Cisco Systems and Comcast announced their 100GbE trials. In October 2008, Huawei presented their first 100GbE interface for their NE5000e router. And On February 16, 2015, the IEEE 802.3bm standard was approved. Since then, 100 transceiver achieves mass production and sales of 10G, 40G, and 100G transceivers for enterprise and data center applications grew rapidly in 2014.From the table below, We know that the market for 100G data center optics is accelerating, but it has yet to be turbocharged by widespread data center deployment in the way 40G transceiver has. And the popularity of 40G transceivers accounted for much of the upswing. Overall, the long-anticipated ramp of 100G transceivermay be at hand and the ongoing movement to 100G and price declines will put revenue pressure on both 10G and 40G. Major growth in the data center for 100 Gigabit Ethernet is on the horizon due to more service providers applying 100G transceiver equipment in their core networks and new silicon entering the market.
table


Posted by: angelina at 10:12 AM | No Comments | Add Comment
Post contains 431 words, total size 4 kb.

July 22, 2015

Get to Know about Fiber Patch Cables

Fiber optic patch cables are the most commonly used components in fiber optic network, capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. Sometimes fiber optic patch cables are also called fiber optic jumpers or fiber patch cords. They are the backbone of the fiber optics industry. These fiber patch cables are strands of optically pure glass as thin as human hair. And these cables carrying information is via mode of transmission of light. Short patch leads usually made with stranded wire are flexible patch cables.

Classification

Fiber patch cable can be classified by transmission medium (long or short distance), by connector construction and by construction of the connector's inserted core cover. Single mode and multimode are classified by transmission medium, which are the two common types of fiber patch cable. While FC, SC, ST, LC, MTRJ, MPO, MU, SMA, FDDI, E2000, DIN4, and D4 Cables are classified by the connectors on either end of the cable. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, E2000 connectors (APC/UPC polish) are all available. Next I will give you a clear introduction to the single mode fiber patch cable and multimode fiber patch cable.

Single mode Fiber Patch Cable

Single mode fiber patch cable is generally yellow, with a blue connector, and a longer transmission distance. Which has a small core and only one pathway of light. With only a single wavelength of light passing through its core, single mode realigns the light toward the center of the core instead of simply bouncing it off the edge of the core as with multimode. Single mode cable features a 9-micron glass core. single-mode fiber patch cable is typically used in long haul network connections spread out over extended areas—longer than a few miles.

single-mode patch cable

Multimode Fiber Patch Cable

Multimode fiber patch cable is generally orange or grey, with a cream or black connector, and a shorter transmission distance, which has a large-diameter core that is much larger than the wavelength of light transmitted, and therefore has multiple pathways of light several wavelengths of light are used in the fiber core. Multimode cable comes with two different core sizes: 50 micron or 62.5 micron. Multimode fiber optic patch cord can be used for most general fiber applications. Use multimode fiber for bringing fiber to the desktop, for adding segments to your existing network, or in smaller applications such as alarm systems.

Multimode Fiber Patch Cable

Application

Fiber patch cables are used in two major application areas—computer work station to outlet and patch panels or optical cross connect distribution center. They are utilized in Medical Imaging, Mechanical Engineering, LAN Applications, CATV Networks, Telephone Lines, etc. They have revolutionized the total network industry of telephones, cable, internet, audio applications, etc. The fiber patch cables offer accurate signal transfer that is totally distortion free. As these fiber patch cables use light as a mode of transmission, there isn’t any hazard of electric interference or any tampering.

Posted by: angelina at 10:13 AM | No Comments | Add Comment
Post contains 528 words, total size 4 kb.

Get to Know about Fiber Patch Cables

Fiber optic patch cables are the most commonly used components in fiber optic network, capped at either end with connectors that allow it to be rapidly and conveniently connected to CATV, an optical switch or other telecommunication equipment. Its thick layer of protection is used to connect the optical transmitter, receiver, and the terminal box. Sometimes fiber optic patch cables are also called fiber optic jumpers or fiber patch cords. They are the backbone of the fiber optics industry. These fiber patch cables are strands of optically pure glass as thin as human hair. And these cables carrying information is via mode of transmission of light. Short patch leads usually made with stranded wire are flexible patch cables.

Classification

Fiber patch cable can be classified by transmission medium (long or short distance), by connector construction and by construction of the connector's inserted core cover. Single mode and multimode are classified by transmission medium, which are the two common types of fiber patch cable. While FC, SC, ST, LC, MTRJ, MPO, MU, SMA, FDDI, E2000, DIN4, and D4 Cables are classified by the connectors on either end of the cable. For most of the patch cables, the SC, ST, FC, LC, MU, MTRJ, E2000 connectors (APC/UPC polish) are all available. Next I will give you a clear introduction to the single mode fiber patch cable and multimode fiber patch cable.

Single mode Fiber Patch Cable

Single mode fiber patch cable is generally yellow, with a blue connector, and a longer transmission distance. Which has a small core and only one pathway of light. With only a single wavelength of light passing through its core, single mode realigns the light toward the center of the core instead of simply bouncing it off the edge of the core as with multimode. Single mode cable features a 9-micron glass core. single-mode fiber patch cable is typically used in long haul network connections spread out over extended areas—longer than a few miles.

single-mode patch cable

Multimode Fiber Patch Cable

Multimode fiber patch cable is generally orange or grey, with a cream or black connector, and a shorter transmission distance, which has a large-diameter core that is much larger than the wavelength of light transmitted, and therefore has multiple pathways of light several wavelengths of light are used in the fiber core. Multimode cable comes with two different core sizes: 50 micron or 62.5 micron. Multimode fiber optic patch cord can be used for most general fiber applications. Use multimode fiber for bringing fiber to the desktop, for adding segments to your existing network, or in smaller applications such as alarm systems.

Multimode Fiber Patch Cable

Application

Fiber patch cables are used in two major application areas—computer work station to outlet and patch panels or optical cross connect distribution center. They are utilized in Medical Imaging, Mechanical Engineering, LAN Applications, CATV Networks, Telephone Lines, etc. They have revolutionized the total network industry of telephones, cable, internet, audio applications, etc. The fiber patch cables offer accurate signal transfer that is totally distortion free. As these fiber patch cables use light as a mode of transmission, there isn’t any hazard of electric interference or any tampering.

Posted by: angelina at 10:05 AM | No Comments | Add Comment
Post contains 528 words, total size 4 kb.

Are You Familiar With Single Mode Fiber?

Customers often feel puzzled about how to select between single mode fiber and multi mode fiber due to its similar function. While in 1980, Professor Huang Hongjia of the Chinese Academy of Sciences recognized that single mode fiber, compared to multi-mode fiber, has the characteristics of lower loss, narrower modal dispersion and have a higher bandwidth, which is ideal for medium capacity long-range communication system. At the same time he developed coupling wave theory in the field of microwave theory and successfully developed single mode optical fiber.

What is Single Mode Fiber?
Singel Mode Fiber
In optical fiber technology, single mode fiber is optical fiber that is designed for the transmission of a single ray or mode of light as a carrier and is used for long-distance signal transmission, which designed to carry light only directly down the fiber—the transverse mode. These modes define the way the wave travels through space, i.e. how the wave is distributed in space. Waves can have the same mode but have different frequencies. This is the case in single-mode fibers, where we can have waves with different frequencies, but of the same mode, which means that they are distributed in space in the same way, and that gives us a single ray of light. Although the ray travels parallel to the length of the fiber, it is often called transverse mode since its electromagnetic vibrations occur perpendicular (transverse) to the length of the fiber.
Types of Single Mode Fibers
In order to get one step closer to understanding the Single mode fiber, common Single mode fiber must be explained before. Standard single mode fiber, dispersion shifted fiber , Non-Zero Dispersion Shifted Fiber are the most popular Single mode fiber in the industrial application. Each type provides unique benefits for device communication. Low water peak fiber is the most common single mode fiber used in our country. Non-Zero dispersion shifted fiber is a kinds of DSF. Its 1550nm dispersion is close to zero, but not zero. It is an improved dispersion-shifted fiber to suppress four-wave mixing. For your easy reference, a quick comparison chart listed below demonstrates the key differences of these three commonly used serial interfaces for industrial Applications.
Description IEC SMF Type ITU Spec. TIA Spec
Standard Single mode Fiber B1.1 G.652 TIA 492CAAA / OS1
Cutoff Shifted Fiber B1.2 G.654
Low Water Peak Fiber B1.3 G.652 TIA 492CAAB / OS2
Dispersion Shifted Fiber B2 G.653
Non-Zero Dispersion Shifted Fiber B4 G.655 TIA-492E000 / TIA-492EA00
Bend-Insensitive Fiber G .657
Connectors of Single Mode Fiber
There are many different types of connectors of single mode fiber. LC Connector, FC Connector, SC Connector, ST Connector, MTRJ Connector, MU Connector, E2000 Connector, SMA Connector are the most popular connectors in the market. Connectors are used to join optical fibers where a connect/disconnect capability is required. The basic connector unit is a connector assembly. A connector assembly consists of an adapter and two connector plugs. Due to the sophisticated polishing and tuning procedures that may be incorporated into optical connector manufacturing, connectors are generally assembled onto optical fiber in a supplier’s manufacturing facility.
Application
Single mode fiber with a relatively narrow diameter, through which only one mode will propagate typically 1310 or 1550nm, which is used in many applications where data is sent at multi frequency (WDM Wave-Division-Multiplexing). Today’s telephone companies use single mode fiber throughout their system as the backbone architecture and as the long-distance connection between city phone systems. Local Area Networks (LAN) is a collective group of computers, or computer systems, connected to each other allowing for shared program software or data bases. Colleges, universities, office buildings, and industrial plants, just to name a few, all make use of single mode fiber within their LAN systems. Power companies are an emerging group that have begun to utilize fiber optics in their communication systems. Most power utilities already have single fiber optic communication systems in use for monitoring their power grid systems. At last, I hope this passage might be useful for the readers to have a brief understanding of SMF.

Posted by: angelina at 01:43 AM | No Comments | Add Comment
Post contains 680 words, total size 5 kb.

July 20, 2015

What Does a SFP Mean?

A small form-factor pluggable (SFP) transceiver is a compact, hot-swappable, input/output transceiver used in data communication and telecommunications networks. SFP interfaces between communication devices like switches, routers and fiber optic cables, and performs conversions between optical and electrical signals. SFP is also called a mini gigabit interface converter (GBIC) because its function is similar to the GBIC transceiver but with much smaller dimensions. The SFP transceiver is not standardized by any official standards body, but rather is specified by amulti-source agreement(MSA), which was developed and is followed by different transceiver manufacturers.

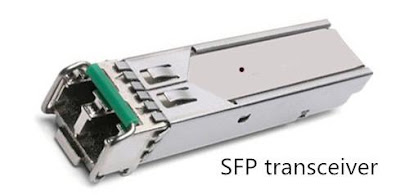

SFP transceiver



Types of SFP Transceivers

SFP Transceivers have a wide range of detachable interfaces to multimode/single-mode fiber optics, which allows users to select the appropriate transceiver according to the required optical range for the network. Besides, SFP transceivers are also available with copper cable interfaces, which allows a host device designed primarily for optical fiber communications to also communicate over unshielded twisted pair networking cables. Available optical SFP modules are generally divided into the following categories: 850 nm/550 m from the MMF (SX), 1310 nm/10 km from the SMF (LX), 1550 nm/80 km from the ZX and DWDM.


Applications of SFP Transceivers

SFP transceivers support communications standards including synchronous optical networking (SONET)/synchronous digital hierarchy (SDH), gigabit ethernet and fiber channel. They also allow the transport of fast Ethernet and gigabit Ethernet LAN packets over time-division-multiplexing-based WANs, as well as the transmission of E1/T1 streams over packet-switched networks.SFP sockets are found inEthernet switches, routers, firewalls andnetwork interface cards. Storage interface cards, also called HBAs or Fibre Channel storage switches, also make use of these modules, supporting different speeds such as 2Gb, 4Gb, and 8Gb. Because of their low cost, low profile, and ability to provide a connection to different types of optical fiber, SFP provides such equipment with enhanced flexibility.


Advantages of SFP Transceivers

SFP transceiver is pluggable that makes it easy to alter the optical interface in the last step of card manufacturing. It’s also easy to accommodate different connector interfaces. Modern optical SFP transceivers support digital diagnostics monitoring (DDM) functions, also known as digital optical monitoring (DOM). This feature gives users the ability to monitor the real-time parameters of SFP, such as optical output power, optical input power, temperature, laser-bias current and transceiver supply voltage. SFP transceivers also have a higher optical reliability and will permit higher soldering temperatures.SFP transceivers are recommended by fiber optic component providers to ensure proper data transmission.


Posted by: angelina at 07:02 AM | No Comments | Add Comment
